图片主题色提取技术

一、通过 CSS 快捷提取

1、图片模糊

div {
  width: 300px;
  height: 200px;
  img {
    width: 300px;
    height: 200px;
    filter: blur(50px);
  }
}

2、放大切割

div {
  width: 300px;
  height: 200px;
  position: relative;
  overflow: hidden;
  img {
    width: 300px;
    height: 200px;
    filter: blur(50px);
    transform: scale(3);
    position: absolute;
    top: 0;
    left: 0;
    right: 0;
    bottom: 0;
  }
}

二、通过算法提取

1、中位切分法（Median cut）

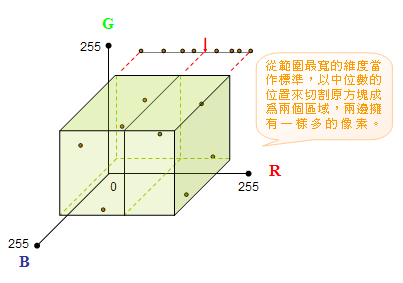

将图像每个像素颜色看作是以 R、G、B 为坐标轴的一个三维空间中的点，由于三个颜色的取值范围为 0~255，所以图像中的颜色都分布在这个颜色立方体内；

在这个三维空间中，以 RGB 中最长的一边为基准，从中位数的位置做切割，使得到的两个长方体像素数量相同；

重复这个过程，直到最终切分得到长方体的数量等于主题颜色数量，最后取长方体的中点即为主题色。

(function () {
  /**
   * 颜色盒子类
   *
   * @param {Array} colorRange    [[rMin, rMax],[gMin, gMax], [bMin, bMax]] 颜色范围
   * @param {any} total   像素总数, imageData / 4
   * @param {any} data    像素数据集合
   */
  function ColorBox(colorRange, total, data) {
    this.colorRange = colorRange;
    this.total = total;
    this.data = data;
    this.volume = (colorRange[0][1] - colorRange[0][0]) * (colorRange[1][1] - colorRange[1][0]) * (colorRange[2][1] - colorRange[2][0]);
    this.rank = this.total * (this.volume);
  }

  ColorBox.prototype.getColor = function () {
    var total = this.total;
    var data = this.data;

    var redCount = 0,
      greenCount = 0,
      blueCount = 0;

    for (var i = 0; i < total; i++) {
      redCount += data[i * 4];
      greenCount += data[i * 4 + 1];
      blueCount += data[i * 4 + 2];
    }

    return [parseInt(redCount / total), parseInt(greenCount / total), parseInt(blueCount / total)];
  }

  // 获取切割边
  function getCutSide(colorRange) {   // r:0,g:1,b:2
    var arr = [];
    for (var i = 0; i < 3; i++) {
      arr.push(colorRange[i][1] - colorRange[i][0]);
    }
    return arr.indexOf(Math.max(arr[0], arr[1], arr[2]));
  }

  // 切割颜色范围
  function cutRange(colorRange, colorSide, cutValue) {
    var arr1 = [];
    var arr2 = [];
    colorRange.forEach(function (item) {
      arr1.push(item.slice());
      arr2.push(item.slice());
    })
    arr1[colorSide][1] = cutValue;
    arr2[colorSide][0] = cutValue;
    return [arr1, arr2];
  }

  // 找到出现次数为中位数的颜色
  function getMedianColor(colorCountMap, total) {
    var arr = [];
    for (var key in colorCountMap) {
      arr.push({
        color: parseInt(key),
        count: colorCountMap[key]
      })
    }

    var sortArr = __quickSort(arr);
    var medianCount = 0;
    var medianColor = 0;
    var medianIndex = Math.floor(sortArr.length / 2)

    for (var i = 0; i <= medianIndex; i++) {
      medianCount += sortArr[i].count;
    }

    return {
      color: parseInt(sortArr[medianIndex].color),
      count: medianCount
    }

    function __quickSort(arr) {
      if (arr.length <= 1) {
        return arr;
      }
      var pivotIndex = Math.floor(arr.length / 2),
        pivot = arr.splice(pivotIndex, 1)[0];

      var left = [],
        right = [];
      for (var i = 0; i < arr.length; i++) {
        if (arr[i].count <= pivot.count) {
          left.push(arr[i]);
        }
        else {
          right.push(arr[i]);
        }
      }
      return __quickSort(left).concat([pivot], __quickSort(right));
    }
  }

  // 切割颜色盒子
  function cutBox(colorBox) {
    var colorRange = colorBox.colorRange,
      cutSide = getCutSide(colorRange),
      colorCountMap = {},
      total = colorBox.total,
      data = colorBox.data;

    // 统计出各个值的数量
    for (var i = 0; i < total; i++) {
      var color = data[i * 4 + cutSide];

      if (colorCountMap[color]) {
        colorCountMap[color] += 1;
      }
      else {
        colorCountMap[color] = 1;
      }
    }
    var medianColor = getMedianColor(colorCountMap, total);
    var cutValue = medianColor.color;
    var cutCount = medianColor.count;
    var newRange = cutRange(colorRange, cutSide, cutValue);
    var box1 = new ColorBox(newRange[0], cutCount, data.slice(0, cutCount * 4)),
      box2 = new ColorBox(newRange[1], total - cutCount, data.slice(cutCount * 4))
    return [box1, box2];
  }

  // 队列切割
  function queueCut(queue, num) {

    while (queue.length < num) {

      queue.sort(function (a, b) {
        return a.rank - b.rank
      });
      var colorBox = queue.pop();
      var result = cutBox(colorBox);
      queue = queue.concat(result);
    }

    return queue.slice(0, 8)
  }

  function themeColor(img, callback) {

    var canvas = document.createElement('canvas'),
      ctx = canvas.getContext('2d'),
      width = 0,
      height = 0,
      imageData = null,
      length = 0,
      blockSize = 1,
      cubeArr = [];

    width = canvas.width = img.width;
    height = canvas.height = img.height;

    ctx.drawImage(img, 0, 0, width, height);

    imageData = ctx.getImageData(0, 0, width, height).data;

    var total = imageData.length / 4;

    var rMin = 255,
      rMax = 0,
      gMin = 255,
      gMax = 0,
      bMin = 255,
      bMax = 0;

    // 获取范围
    for (var i = 0; i < total; i++) {
      var red = imageData[i * 4],
        green = imageData[i * 4 + 1],
        blue = imageData[i * 4 + 2];

      if (red < rMin) {
        rMin = red;
      }

      if (red > rMax) {
        rMax = red;
      }

      if (green < gMin) {
        gMin = green;
      }

      if (green > gMax) {
        gMax = green;
      }

      if (blue < bMin) {
        bMin = blue;
      }

      if (blue > bMax) {
        bMax = blue;
      }
    }

    var colorRange = [[rMin, rMax], [gMin, gMax], [bMin, bMax]];
    var colorBox = new ColorBox(colorRange, total, imageData);

    var colorBoxArr = queueCut([colorBox], 8);

    var colorArr = [];
    for (var j = 0; j < colorBoxArr.length; j++) {
      colorBoxArr[j].total && colorArr.push(colorBoxArr[j].getColor())
    }

    callback(colorArr);
  }

  window.themeColor = themeColor
})()

2、八叉树算法

八叉树算法主要思路是将 R、G、B 通道的数值做二进制转换后逐行放下，可得到八列数字。如 #FF7880转换后为：

R: 1111 1111
G: 0111 1000
B: 0000 0000

再将 RGB 通道逐列粘合，可以得到 8 个数字，即为该颜色在八叉树中的位置，如图：

在将所有颜色插入之后，再进行合并运算，直到得到所需要的颜色数量为止。

在实际操作中，由于需要对图像像素进行遍历后插入八叉树中，并且插入过程有较多的递归操作，所以比中位切分法要消耗更长的时间。

(function () {

  var OctreeNode = function () {
    this.isLeaf = false;
    this.pixelCount = 0;
    this.red = 0;
    this.green = 0;
    this.blue = 0;
    this.children = [null, null, null, null, null, null, null, null];
    this.next = null;
  }

  var root = null,
    leafNum = 0,
    colorMap = null,
    reducible = null;

  function createNode(index, level) {
    var node = new OctreeNode();
    if (level === 7) {
      node.isLeaf = true;
      leafNum++;
    } else {
      // 将其丢到第 level 层的 reducible 链表中
      node.next = reducible[level];
      reducible[level] = node;
    }

    return node;
  }

  function addColor(node, color, level) {
    if (node.isLeaf) {
      node.pixelCount += 1;
      node.red += color.r;
      node.green += color.g;
      node.bllue += color.b;
    }
    else {
      var str = "";
      var r = color.r.toString(2);
      var g = color.g.toString(2);
      var b = color.b.toString(2);
      while (r.length < 8) r = '0' + r;
      while (g.length < 8) g = '0' + g;
      while (b.length < 8) b = '0' + b;

      str += r[level];
      str += g[level];
      str += b[level];

      var index = parseInt(str, 2);

      if (null === node.children[index]) {
        node.children[index] = createNode(index, level + 1);
      }

      if (undefined === node.children[index]) {
        console.log(index, level, color.r.toString(2));
      }

      addColor(node.children[index], color, level + 1);
    }
  }

  function reduceTree() {

    // 找到最深层次的并且有可合并节点的链表
    var level = 6;
    while (null == reducible[level]) {
      level -= 1;
    }

    // 取出链表头并将其从链表中移除
    var node = reducible[level];
    reducible[level] = node.next;

    // 合并子节点
    var r = 0;
    var g = 0;
    var b = 0;
    var count = 0;
    for (var i = 0; i < 8; i++) {
      if (null === node.children[i]) continue;
      r += node.children[i].red;
      g += node.children[i].green;
      b += node.children[i].blue;
      count += node.children[i].pixelCount;
      leafNum--;
    }

    // 赋值
    node.isLeaf = true;
    node.red = r;
    node.green = g;
    node.blue = b;
    node.pixelCount = count;
    leafNum++;
  }

  function buidOctree(imageData, maxColors) {
    var total = imageData.length / 4;
    for (var i = 0; i < total; i++) {
      // 添加颜色
      addColor(root, {
        r: imageData[i * 4],
        g: imageData[i * 4 + 1],
        b: imageData[i * 4 + 2]
      }, 0);

      // 合并叶子节点
      while (leafNum > maxColors) reduceTree();
    }
  }

  function colorsStats(node, object) {
    if (node.isLeaf) {
      var r = parseInt(node.red / node.pixelCount);
      var g = parseInt(node.green / node.pixelCount);
      var b = parseInt(node.blue / node.pixelCount);

      var color = r + ',' + g + ',' + b;
      if (object[color]) object[color] += node.pixelCount;
      else object[color] = node.pixelCount;
      return;
    }

    for (var i = 0; i < 8; i++) {
      if (null !== node.children[i]) {
        colorsStats(node.children[i], object);
      }
    }
  }

  window.themeColor = function (img, callback) {
    var canvas = document.createElement('canvas'),
      ctx = canvas.getContext('2d'),
      width = 0,
      height = 0,
      imageData = null,
      length = 0,
      blockSize = 1;

    width = canvas.width = img.width;
    height = canvas.height = img.height;

    ctx.drawImage(img, 0, 0, width, height);

    imageData = ctx.getImageData(0, 0, width, height).data;

    root = new OctreeNode();
    colorMap = {};
    reducible = {};
    leafNum = 0;

    buidOctree(imageData, 8)

    colorsStats(root, colorMap)

    var arr = [];
    for (var key in colorMap) {
      arr.push(key);
    }
    arr.sort(function (a, b) {
      return colorMap[a] - colorMap[b];
    })
    arr.forEach(function (item, index) {
      arr[index] = item.split(',')
    })
    callback(arr)
  }
})()

3、其它算法

• 最小差值法
• 魔法数字法
• 聚类
• 色彩建模法

三、使用 color.js 库快捷提取

color.js 可以快捷提取图片主题色。

1、安装

npm install color.js

或

<script src="https://unpkg.com/color.js@1.2.0/dist/color.js"></script>

2、使用

import { prominent } from 'color.js'
import curImg from './photo.jpg'

prominent(curImg, { amount: 1 }).then((color) => {
  console.log(color)  // [20, 20, 40]
})
// 或
const color = await prominent(curImg, { amount: 1 })
console.log(color)    // [20, 20, 40]

除了以上，也可以用 Color Thief 提取主题色。
